Auto Hatch Opener

Preventing falls from the platform

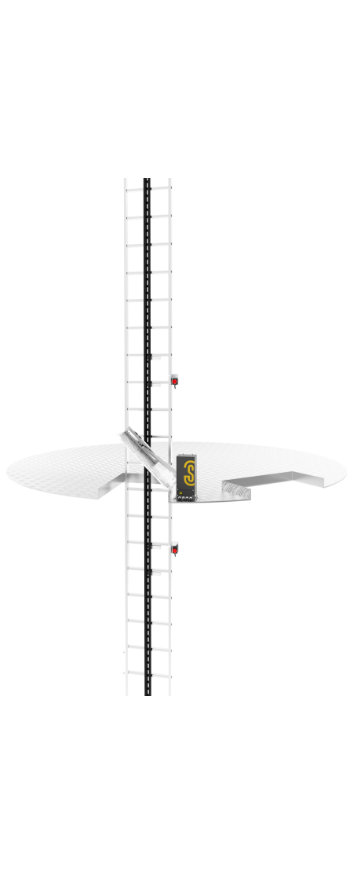

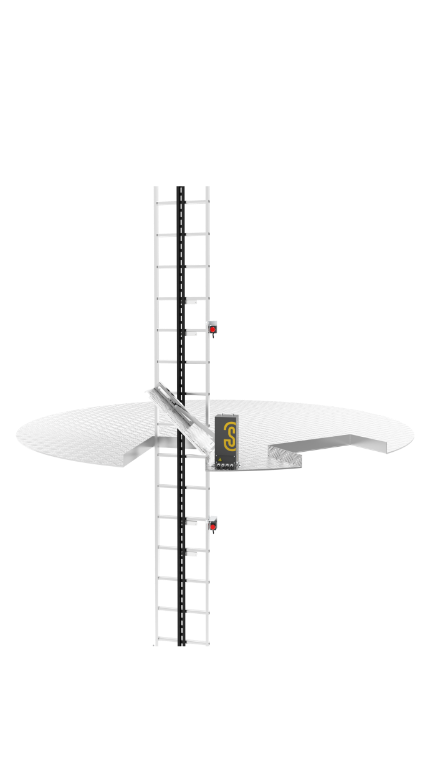

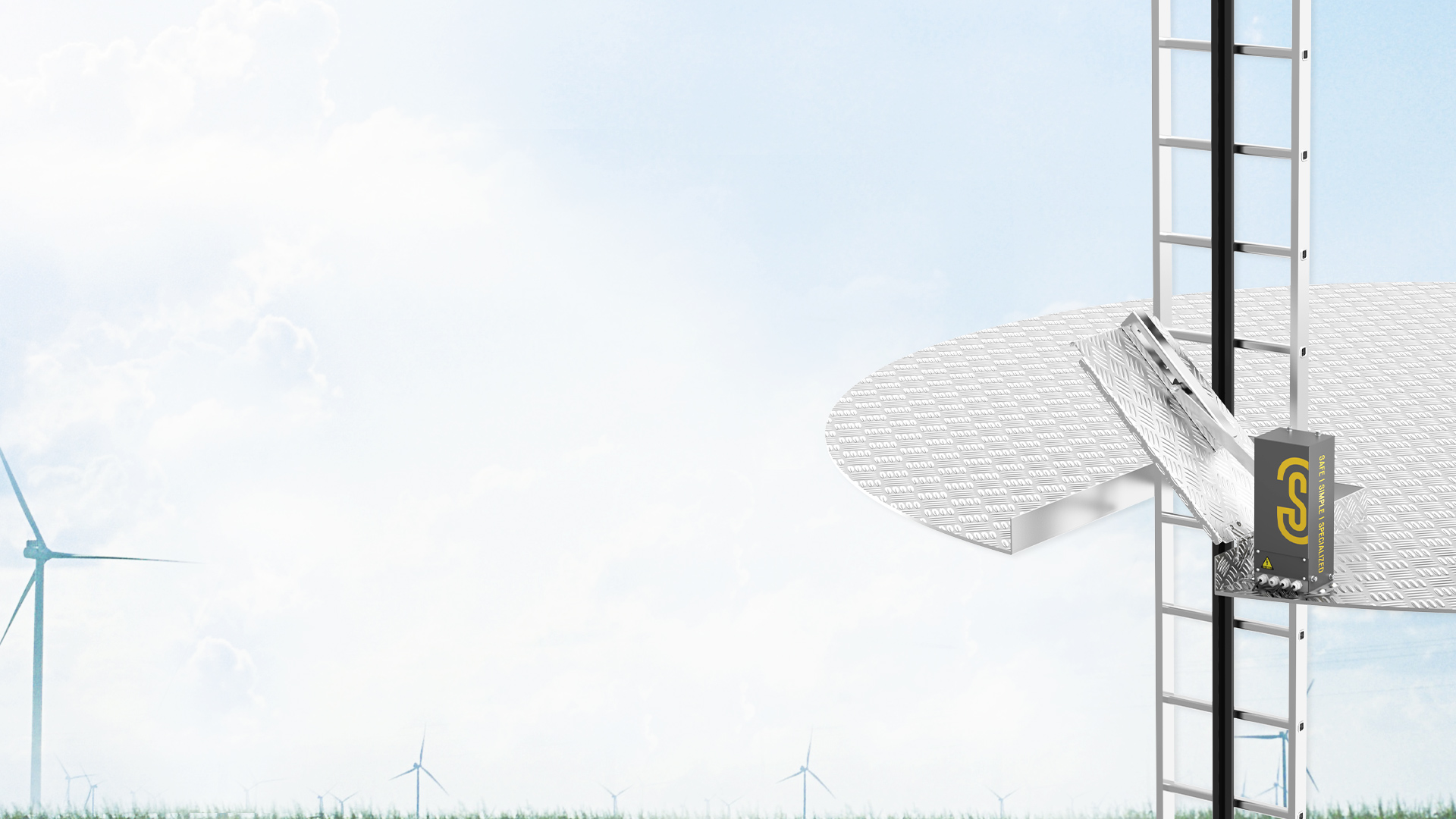

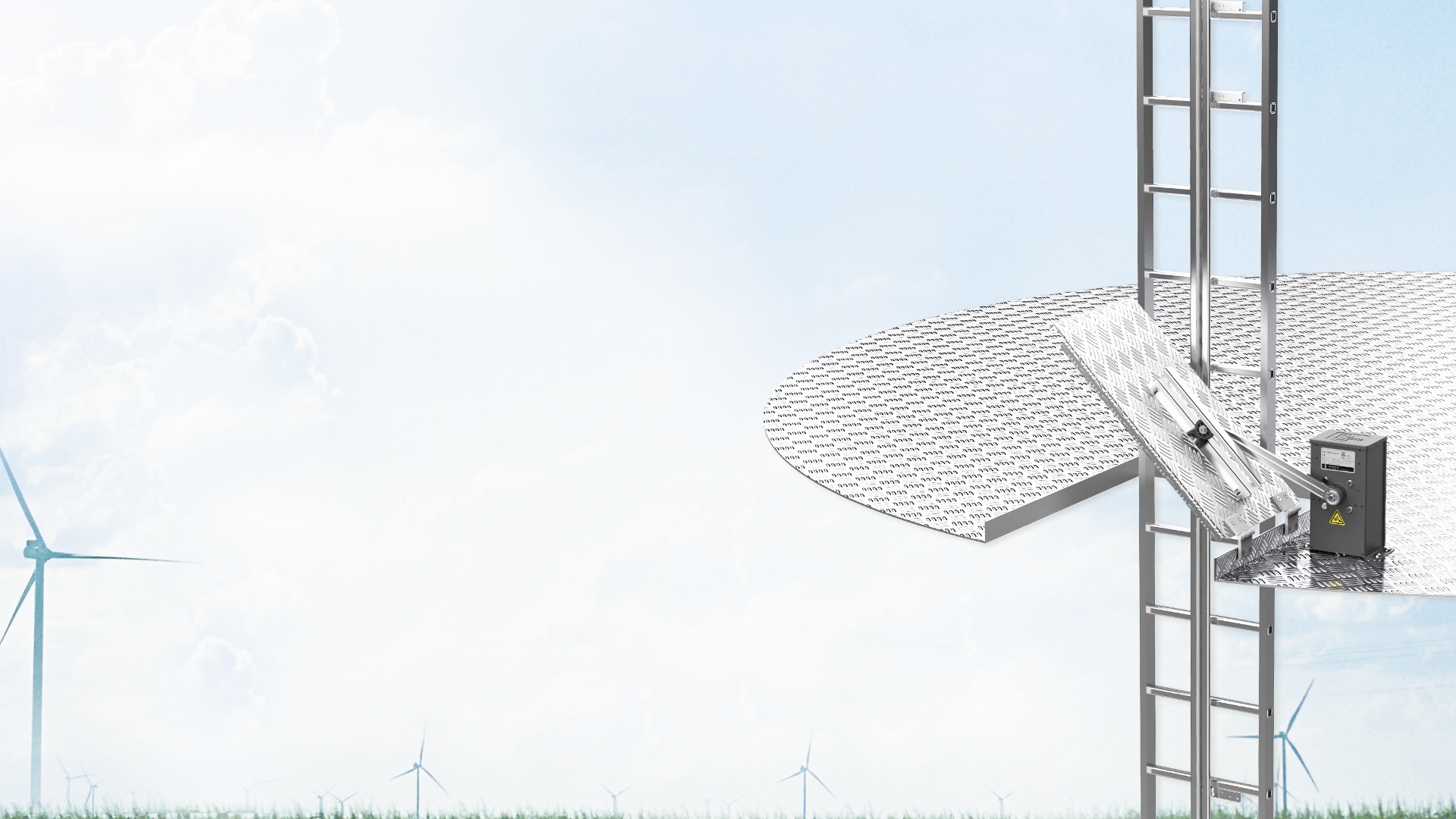

The Auto Hatch Opener makes Climb Auto System operation even more convenient by automatically opening and closing platform hatches as the car passes through them.

Auto Hatch Opener

Download brochure

https://youtu.be/4c9siaAFigM

1 / 1

Videos

Add Value to Your Business

Smart Control, Safe and Convenient
Auto-sensing, automatic opening and closing after fixed distance recognition
Automatic retention, avoiding the cover falling back and causing injuries
Automatic zero calibration, no need for tedious debugging, ready for use

Compact, Flexible and Durable
Work activities on the platform are not impaired thanks to the AHO’s compact design. A service life of over 25 years due to the high-quality materials and robust construction.

Multi-Scenario Compatible Adaptation
Back/Side opening model available. It is compatible with manual climbing, Climb Assist, Climb Auto System, and other multi-scenarios, which can be adapted to most wind turbines. With the third-generation transmission design and high torque output, it can control covers weighing up to 15 kg.

Easy Installation, Plug and Play
There is no need to:
1. retrofit the wind turbine platform structure
2. change the specifications of the line protection device
3. start with no fire
Only one cable and eight bolts can a single person install it in 45 minutes.

Multi-Protection, Maintenance-Free

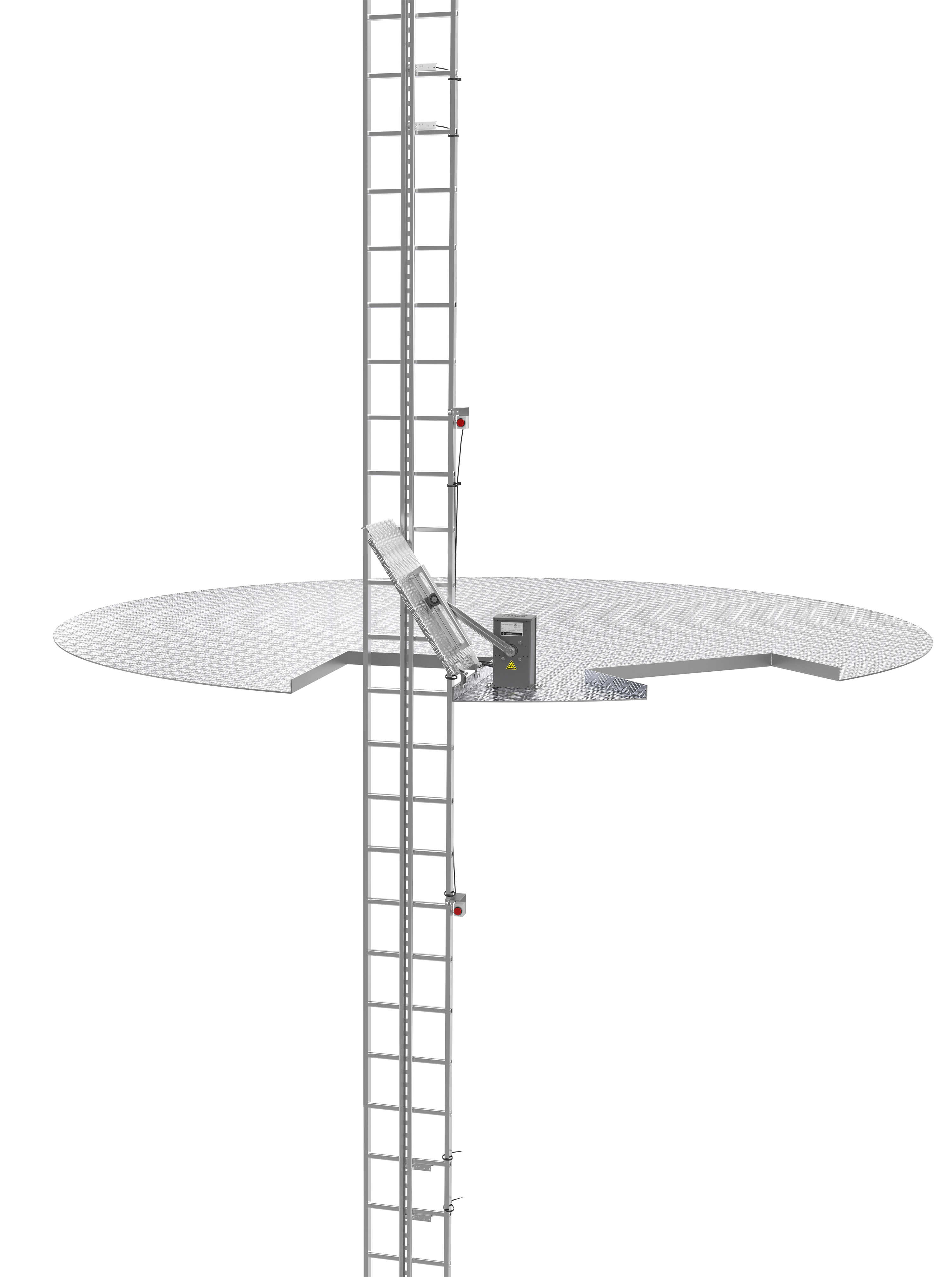

Product Details

Guide Board

As wheel guide, it is fixed to the platform hatches.

Connecting Rod

The machine through the guiding device to drive the platform hatches to open and close.

Platform Hatches

Prevent falling people and objects. It is installed on the platform skirting edge through the hinge, which can be opened and closed. Use on-site hatch or re-create according to the actual situation.

Button on the Platform (Manual Option)

It is installed on top of the platform. With personnel manual climbing, we can control the opening and closing of the hatches by triggering the device.

Button under the Platform (Manual Option)

It is installed on bottom of the platform. With personnel manual climbing, we can control the opening and closing of the hatches by triggering the device.

Drive Unit

Installed on the hinge side of the platform hatches, it is the main power source of the Auto Hatch Opener.

Upper Sensor

It is installed on the top of the platform with Climb Auto System. The platform hatches automatically open or close after triggering the Climb Auto System.

Lower Sensor

It is installed on the bottom of the platform with Climb Auto System. The platform hatches automatically open or close after triggering the Climb Auto System.

Guide Board

As wheel guide, it is fixed to the platform hatches.

Connecting Rod

The machine through the guiding device to drive the platform hatches to open and close.

Platform Hatches

Prevent falling people and objects. It is installed on the platform skirting edge through the hinge, which can be opened and closed. Use on-site hatch or re-create according to the actual situation.

Button on the Platform (Manual Option)

It is installed on top of the platform. With personnel manual climbing, we can control the opening and closing of the hatches by triggering the device.

Button under the Platform (Manual Option)

It is installed on bottom of the platform. With personnel manual climbing, we can control the opening and closing of the hatches by triggering the device.

Drive Unit

Installed on the hinge side of the platform hatches, it is the main power source of the Auto Hatch Opener.

Upper Sensor

It is installed on the top of the platform with Climb Auto System. The platform hatches automatically open or close after triggering the Climb Auto System.

Lower Sensor

It is installed on the bottom of the platform with Climb Auto System. The platform hatches automatically open or close after triggering the Climb Auto System.

01 / 04

Key Features

  • Adaptable to Most Hatches
  • Robust Temperature Resistance
  • Easy Installation
  • Compact Design
  • Dual Operation

Two models

IHM-15

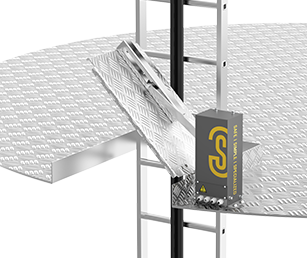

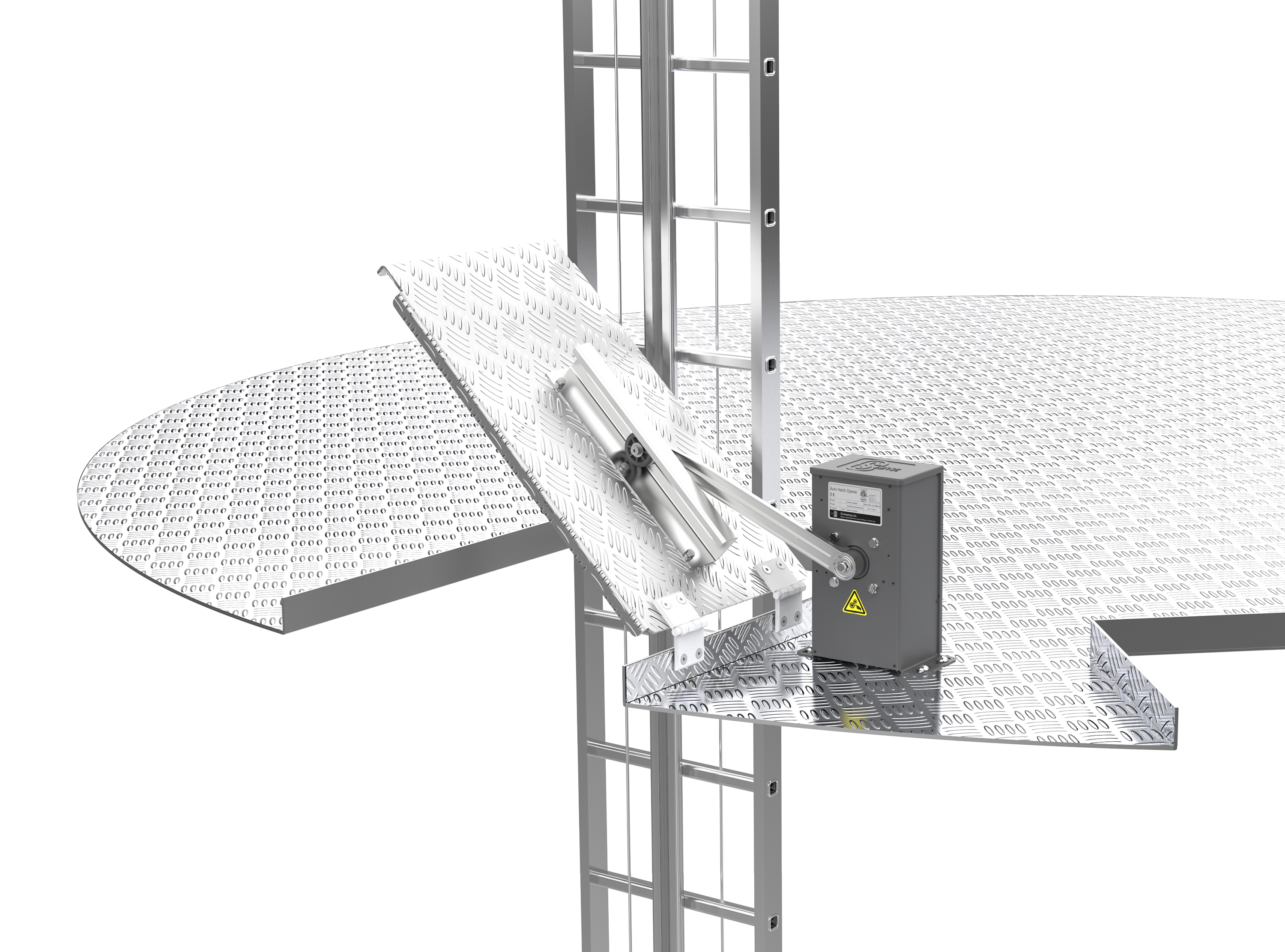

Side-Opening Model
IHM-15

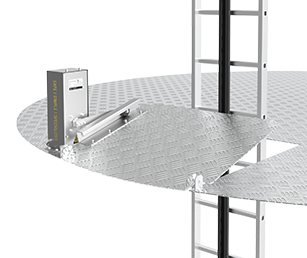

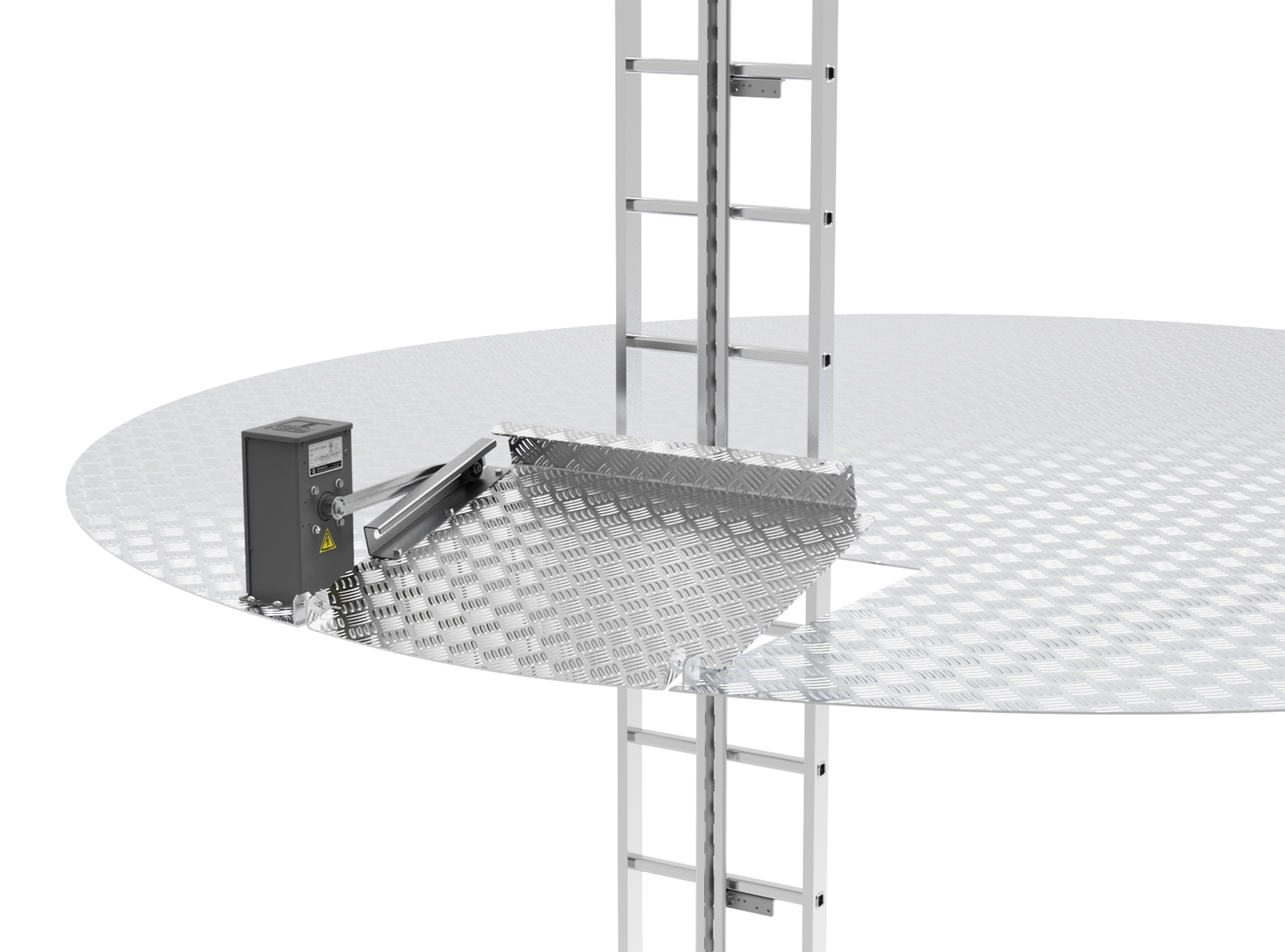

Back-Opening Model

SPECIFICATIONS

Auto Hatch System

Model IHM-15
Dimensions 172 mm × 131 mm × 408 mm
Power supply Single-phase, AC 200-240 V
Power 60 W



Protection grade IP 44 (higher grade optional)
Anti-corrosion grade C4
Operating temperature -40℃ – +60℃
Certification CE, ETL
