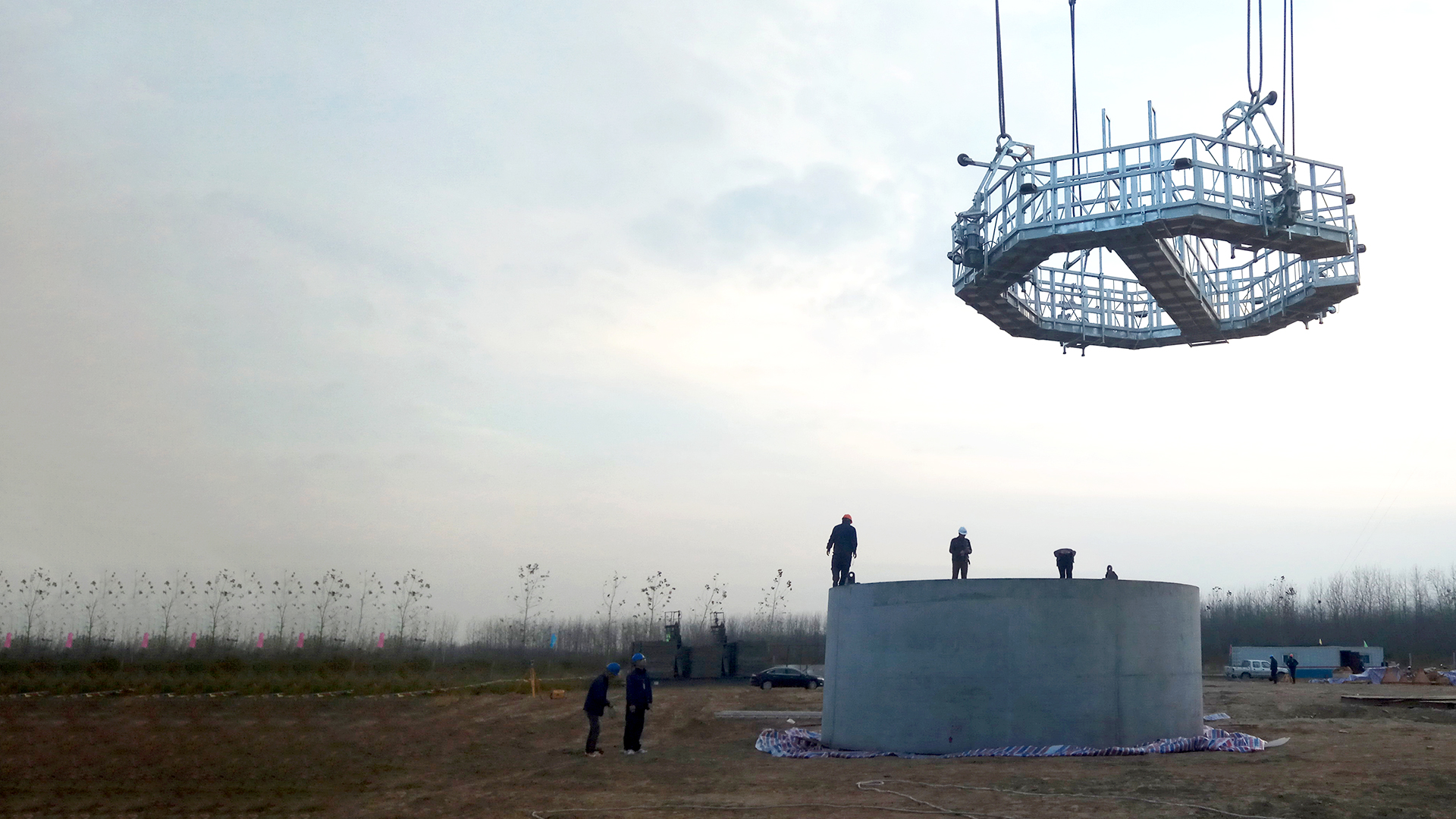

CP4-500 Suspension Platform

Construction platform for hybrid tower construction, which can be combined with modules according to different tower tube diameters

The suspension platform is composed of suspension device, platform, traction hoist, SafeLock, electric control system, wire rope, and other major components. The suspension device is fixed in the cylinder wall, and the platform relies on its own hoist along the steel wire rope to climb. Operators can run up and down in the vertical direction, and they can be free to hover at any height for work. The whole system is self-contained, flexible, and convenient to use without any external assistance. Modular main structure and aluminum alloy material of the standard section are spliced into the required diameter of the tower platform.

CP4-500
Suspension Platform

A set of ring-shaped suspension platform can solve the mixed tower construction operation of different sizes.

CP4-500 mixed tower building construction suspension platform is a kind of suspended lifting and maintenance platform, which is composed of suspension point around the rail components, over the bridge rail components, hangers, traction hoist, SafeLock, wire rope guide pulley components, wall roller components, support wheel components, suspension wire rope components, wire rope, safety rope, electrical control system, etc. Modular design can be composed of a variety of sizes through the standard section.

Product Details

SafeLock

Avoid the platform over speed descent.

Electrical Control System

Control the operation of the platform, and its alarm sounds in case of an emergency.

Traction Hoist and Overload Detection Device

Drive the platform to descend and ascend the towers, preventing overload operation.

Hanger

Wall Roller Assembly

Telescopic arm can be adjusted to maintain the distance between the platform and the inner wall of the boiler.

SafeLock

Avoid the platform over speed descent.

Electrical Control System

Control the operation of the platform, and its alarm sounds in case of an emergency.

Traction Hoist and Overload Detection Device

Drive the platform to descend and ascend the towers, preventing overload operation.

Hanger

Wall Roller Assembly

Telescopic arm can be adjusted to maintain the distance between the platform and the inner wall of the boiler.

01 / 03

Key Features

  • 3S CP4-500 Mixed Tower Suspension Platform is a cement tower lifting construction lifting unit, which can be applied to different diameters of the tower.
  • Replace the suspension point fall arrester alternately by section: After reaching the limit of the tower turbine in this section, hang the anti-fall hook on the platform and replace the upper suspension point on the upper section.
  • (Customizable) Camera or helmet: Real-time monitoring of safety hazards on the platform to protect personnel safety.
  • Traction hoist and overload detection device: Drive the platform to descend and ascend the towers, preventing overload operation.
  • Upper limit switch: Protects the platform from exceeding the safety distance.
  • SafeLock: Avoid the platform over speed descent.
  • Electrical control system: Control the operation of the platform, and its alarm sounds in case of an emergency.
  • Wall roller assembly:Telescopic arm can be adjusted to maintain the distance between the platform and the inner wall of the boiler.

SPECIFICATIONS

CP4-500 Suspension Platform

Model CP4-500
Rated load 600 Kg
Speed 9 m/min
Power supply 7.2 KW



Weigh 1300 Kg
Rated voltage 400 V/690 V
Dimensions Can be customized
