Mast Climbing Work Platform

The platform ascends and descends along the mast with precision, driven by the meshing gears and racks. Enjoying high strength metal structures, complete safety features, and stability, the product is suitable for various exterior wall contour and can be applied in the fields of construction, maintenance, and cleaning.

Mast Climbing Work Platform

1 / 2

2 / 2

Videos

8 Safety Measures

  • Progressive overspeed safety device
  • Landing gate and platform gate interlocking device
  • Overload protection
  • Travel limit protection
  • Motor overheating protection
  • Manual descent in event of power loss
  • 2.5-m alarm with audible and visual signal
  • Safety buffer

Product Details

Drive Unit

The gear motor propels the work platform to travel up or down along the mast. In the event of power loss, the manual descent mechanism allows the work platform to lower down to safety.

Overload Detection Device

When exceeding the rated load, the device activates an audible and visual alarm and disconnects the power supply.

Overspeed Safety Device

When reaching the actuating speed, the device operates, stopping the work platform motion and disconnecting the power supply.

Rack Detection Switch

To prevent the work platform from detaching the mast. When the switch is actuated, the power supply is disconnected, and may be reconnected by resetting the switch after manual descent.

Guiding System

To make sure that the platform travels in the designate path and in a safe and smooth manner.

Work Platform

Modular work platform, meeting diverse operational needs across various scenarios.

Platform Gate

The gate is positioned in the middle for easy access. Equipped with position switches, the platform is prevented from moving when the gate is open and operates normally when the gate is closed.

Towable Chassis

Solid tires, retractable outriggers for stable support, ensuring safe operations.

Drive Unit

The gear motor propels the work platform to travel up or down along the mast. In the event of power loss, the manual descent mechanism allows the work platform to lower down to safety.

Overload Detection Device

When exceeding the rated load, the device activates an audible and visual alarm and disconnects the power supply.

Overspeed Safety Device

When reaching the actuating speed, the device operates, stopping the work platform motion and disconnecting the power supply.

Rack Detection Switch

To prevent the work platform from detaching the mast. When the switch is actuated, the power supply is disconnected, and may be reconnected by resetting the switch after manual descent.

Guiding System

To make sure that the platform travels in the designate path and in a safe and smooth manner.

Work Platform

Modular work platform, meeting diverse operational needs across various scenarios.

Platform Gate

The gate is positioned in the middle for easy access. Equipped with position switches, the platform is prevented from moving when the gate is open and operates normally when the gate is closed.

Towable Chassis

Solid tires, retractable outriggers for stable support, ensuring safe operations.

01 / 04

Key Features

  • Robust and durable structure
  • Quick Installation and simple operation
  • Flexible relocation
  • Applicable in various applications

SPECIFICATIONS

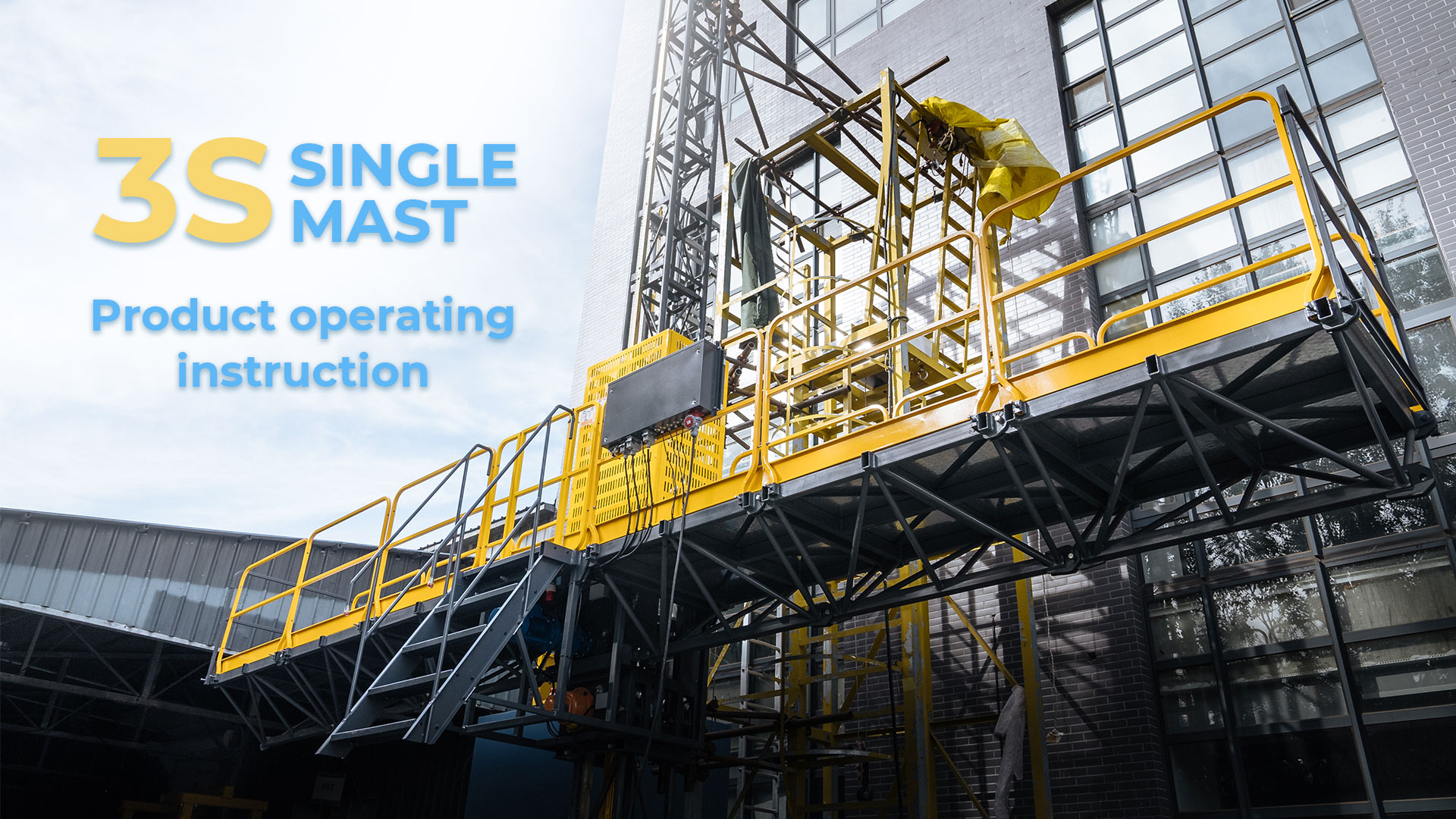

Single Mast Climbing Work Platform

Model MCWP450-S
Load capacity 1400 - 2300 kg
Platform dimensions (length × width) 4.2 m-10.2 m×1.2 m
Lifting height 200 m
Lifting speed 8 m/min ± 10%
Power supply 400 v 3P + N + PE 50/60 Hz
Mast section dimensions 450 mm × 450 mm × 1508 mm
Power 5.5 kW

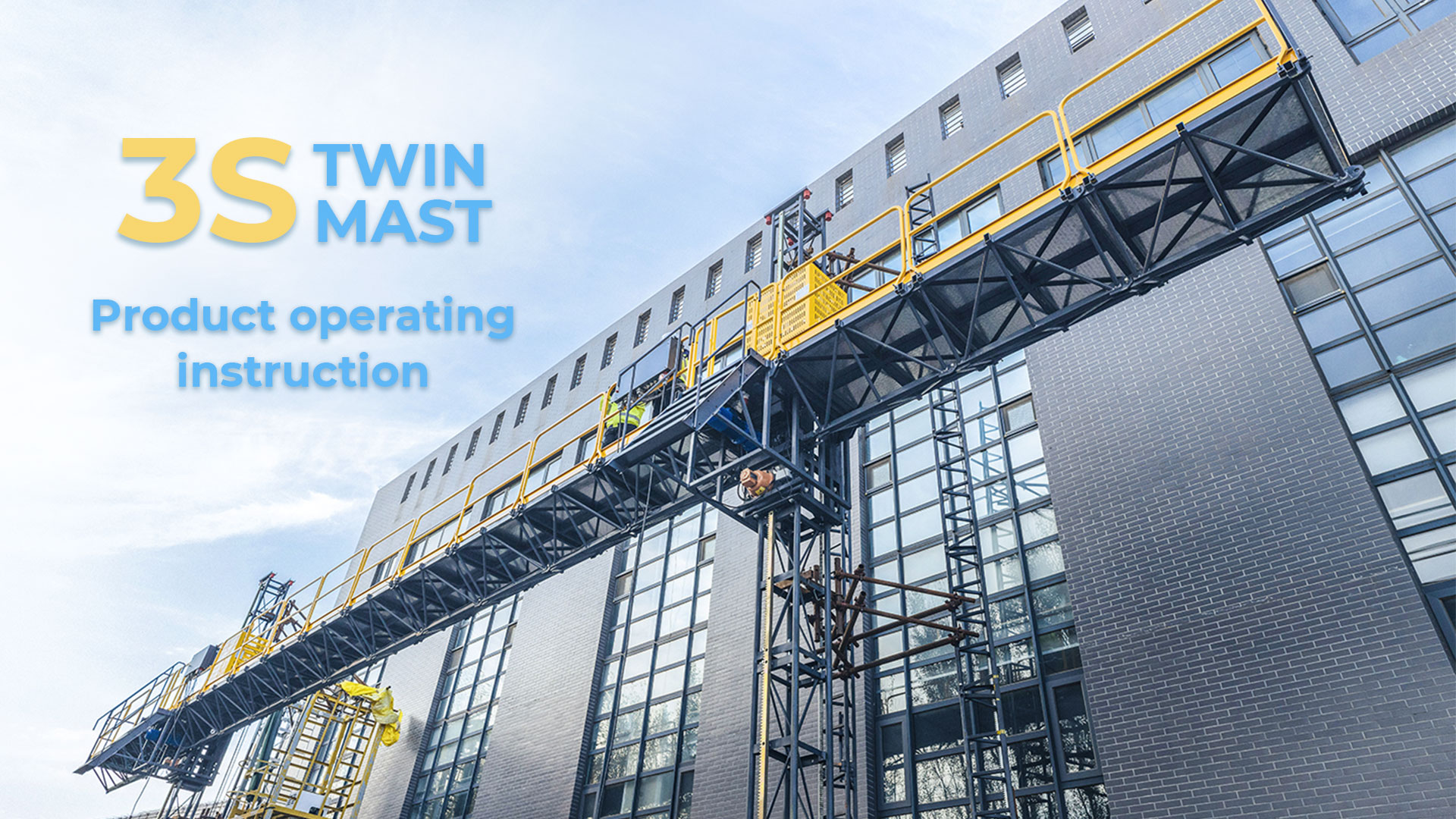

Twin Mast Climbing Work Platform

Model MCWP450-T
Load capacity 2500 - 4500 kg
Platform dimensions (length × width) 8.4 m-29.4 m×1.2 m
Lifting height 200 m
Lifting speed 8 m/min±10%
Power supply 400 v 3P + N + PE 50/60 Hz
Mast section dimensions 450 mm × 450 mm × 1508 mm
Power 2×5.5 kW
