Sealed Self-Retracting Lifeline

Fast braking, safe and reliable

This lightweight, durable fall protection has a self-retracting, built-in wire rope that provides guaranteed safety for personnel while allowing them to move freely in the work area. Should a fall occur, the brake will self-engage to arrest the fall. The 3S Protection Sealed Self-Retracting Lifeline allows technicians to perform repairs and installations at height with complete peace of mind.

Videos

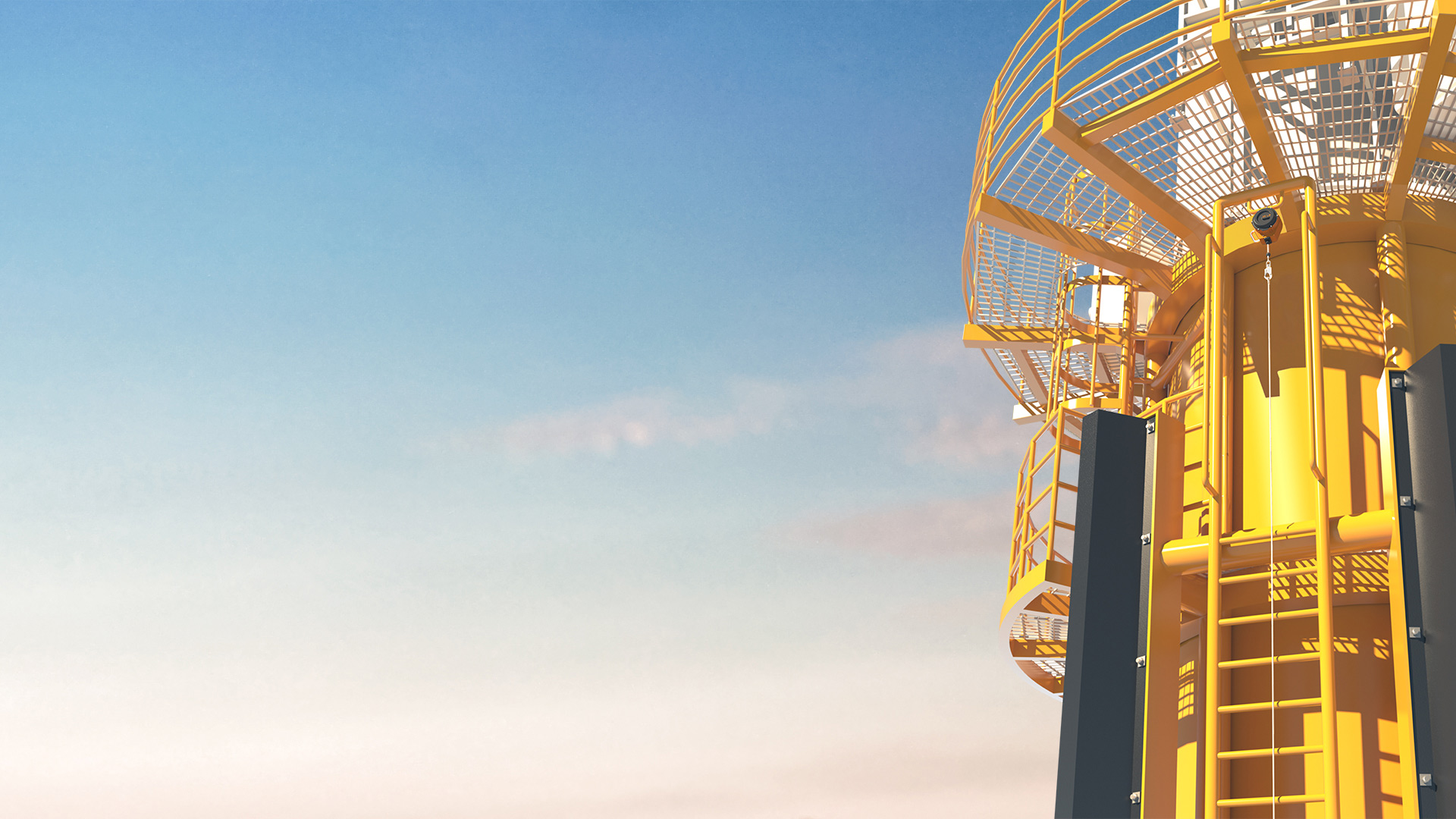

Onshore and Offshore Applications
Designed for both, onshore and offshore, the SRL-15S and the SRL-25S can operate in the harshest environments.

Self-Retracting
The self-retracting design allows the lifeline to be extended and retracted, always keeping it taut. This provides freedom of movement without compromising safety.

Self-Locking
The self-locking fall arrest mechanism engages instantly, should a fall occur.

Durable Design
The product’s durable design features anti-corrosive protection to avoid damage from the environment.

Simple Installation and Disassembly
The reliable, self-locking lifeline is easy to install, use and disassemble.

No Maintenance from User
The lifeline is thoughtfully designed to require no maintenance from the user.

Extended Serviceable Life with Minimal Maintenance Costs
The 3S Protection Sealed Self-Retracting Lifeline offers an extended serviceable life with minimal maintenance costs.

Sealed Design
The sealed design protects the lifeline from the elements and prevents damage from grease, moisture, and dirt.

Product Details

D Shackle Material: 316 Stainless Steel

High corrosion resistance

Housing and Surface Treatment: Aluminum Alloy & Three-Layer Coating

Exceed the C5-M anti-corrosion standard

Internal and External Fasteners: 316 Stainless Steel

The highest standards in the industry

Sealing Material: Silicone

For extreme harsh environments; Upgraded corrosion resistance

Wire Rope: 316 Stainless Steel

For corrosion protection with high requirements

Rotatable Hooks: Aircraft-Class Aluminum Alloy

Made of AA7075 aluminum alloy;
High strength and corrosion resistance;
The hook can be rotated 360° to prevent kinking of wire cable

D Shackle Material: 316 Stainless Steel

High corrosion resistance

Housing and Surface Treatment: Aluminum Alloy & Three-Layer Coating

Exceed the C5-M anti-corrosion standard

Internal and External Fasteners: 316 Stainless Steel

The highest standards in the industry

Sealing Material: Silicone

For extreme harsh environments; Upgraded corrosion resistance

Wire Rope: 316 Stainless Steel

For corrosion protection with high requirements

Rotatable Hooks: Aircraft-Class Aluminum Alloy

Made of AA7075 aluminum alloy;
High strength and corrosion resistance;
The hook can be rotated 360° to prevent kinking of wire cable

01 / 03

Key Features

  • IP68 and IP69K for extreme environments
  • Passed 2000h corrosion resistance test, the highest standards in the industry
  • All internal and external connections are made of 316 stainless steel
  • High strength aluminum alloy shell with three layers of coating to avoid corrosion
  • Greatly reduce arresting distance to become more responsive and safer
  • Capacity 190 kg for personnel and equipment, the highest standards in the industry
  • Obtained domestic, European and North American certifications, with users around the world

SPECIFICATIONS

Sealed Self-Retracting Lifeline

Model SRL-15S / SRL-25S
Rated load 30–140 kg (60-310 lbs)
Maximum impact force 6 kN at 100 kg load,
8 kN at 140 kg load
Maximum static force 12.2 kN
Wire rope length 15 m / 25 m
Wire rope diameter 5 mm
Maximum braking distance 1 m



Weight (incl. wire rope) 13.5 kg / 30 kg
Constructing materials Aluminum alloy housing, stainless steel components
Anti-corrosion class C5-M
Protection class IP69K
Certification CE
Compliant with standard EN360, GB 24544-2009, ANSI Z359.14-2014, CSA Z259.2.2-17
